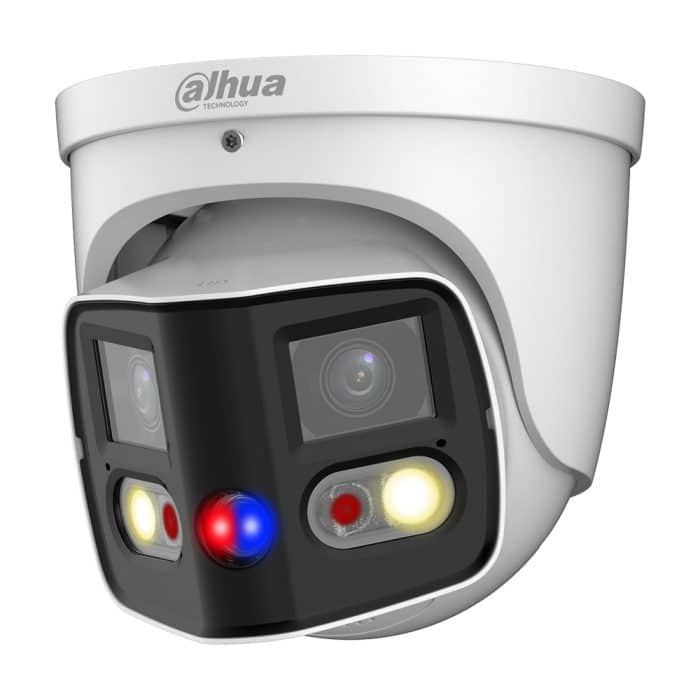

Dahua 2x4MP Active Deterrence Duo Splicing Eyeball WizSense Network Camera DH-IPC-PDW3849-A180-AS-PV

Dahua 2x4MP Active Deterrence Duo Splicing Eyeball WizSense Network Camera DH-IPC-PDW3849-A180-AS-PV - Image 2

Dahua 2x4MP Active Deterrence Duo Splicing Eyeball WizSense Network Camera DH-IPC-PDW3849-A180-AS-PV - Image 3

Dahua 2x4MP Active Deterrence Duo Splicing Eyeball WizSense Network Camera DH-IPC-PDW3849-A180-AS-PV

Outputs 180° wide angle splicing image.
Outputs max. 8 MP (4096 × 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm (red and blue lights)
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 4.0.
One-tap arming/disarming through alarm input

Login to view Prices SKU: DH-IPC-PDW3849-A180-AS-PV Category: IP Cameras Tags: 24/7 Colour Cameras, 4K IP Cameras, Active Deterrence, Dual Illumination, IP Cameras, Panoramic Cameras

Camera

Image Sensor

Dual 1/2.7″ CMOS

Max. Resolution

4096 (H) × 1860 (V)

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)

0.0005 lux@F1.4 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 25 m (82.02 ft) (IR LED)

Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–77°

Rotation: 0°–360°

Lens Type

Fixed-focal

Lens Mount

Focal Length

2.8 mm

Field of View

Horizontal: 180°; Vertical: 86°

Max. Aperture

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.8 mm

50.6 m (166.01 ft)

20.2 m

(66.27 ft)

10.1 m

(33.14 ft)

5.1 m

(16.73 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD 4.0

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Enlarge and track the targets of intelligent alarms

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+;

Smart H.264+

AI Coding

AI H.265;

AI H.264

Video Frame Rate

Main stream: 4096 × 1860@(1–20 fps )

Sub stream: 1200 × 530@(1–20 fps)

Third stream: 1920 × 860@(1–20 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 6 kbps –16384 kbps

H.265: 6 kbps –16384 kbps

Day/Night

Auto(ICR)/Color/B/W

120 dB

Scene Self-adaptation (SSA)

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Privacy Masking

4 areas

Defog

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 8 and later
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3 V–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 3.95 W (12 VDC); 4.95 W (PoE)

Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

Structure

Casing

Metal

Product Dimensions

Φ122 mm × 135.2 mm (Φ4.80″ × 5.32″ )

Net Weight

990 g (2.18 lb)

Gross Weight

1150 g (2.54 lb)

	Title	Type	Size
	IPC-PDW3849-A180-AS-PV_datasheet_20230821	application/pdf	314 KB

Brand	Dahua
Resolution	8 MegaPixel
Technology	IP
