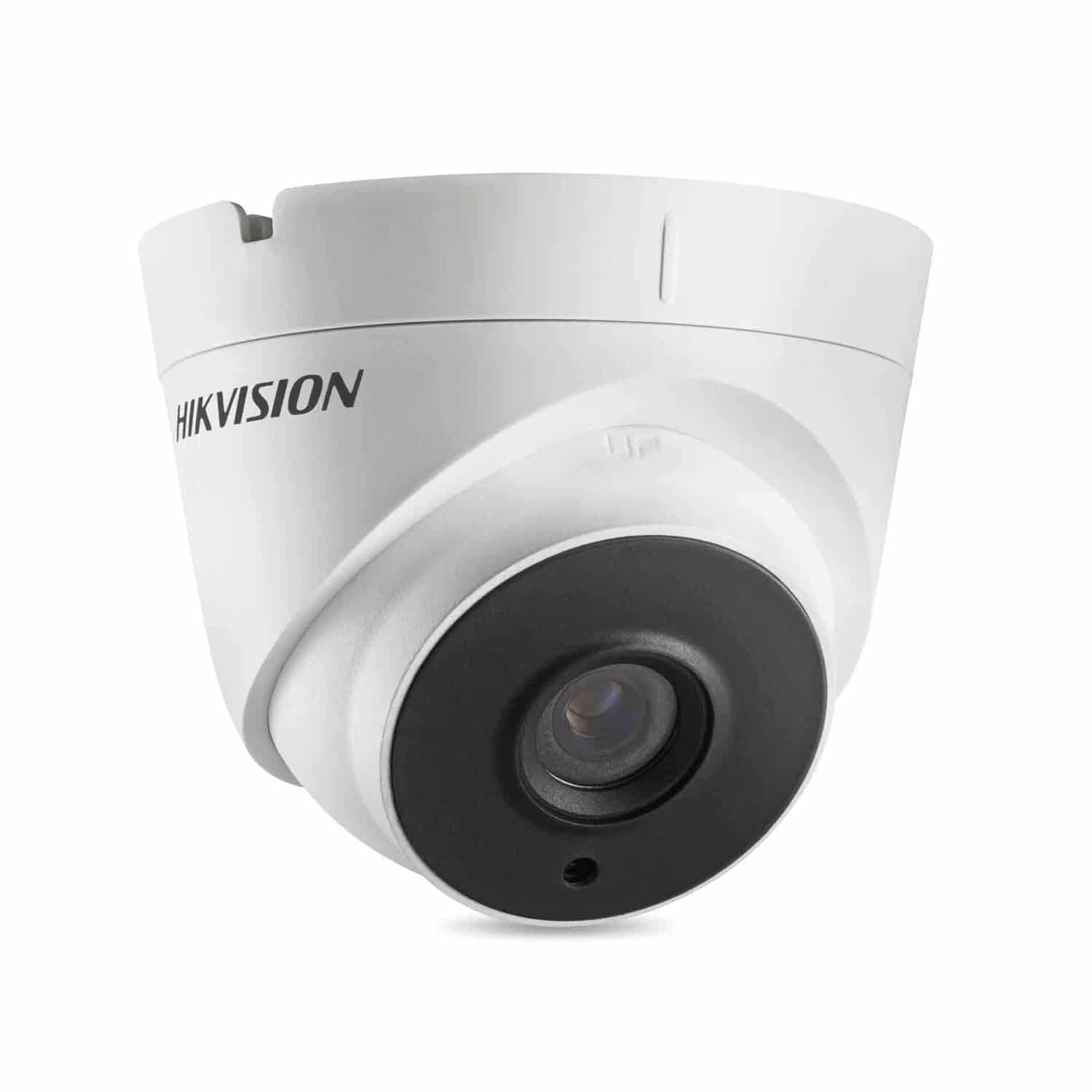

Hikvision 5MP 3.6mm Turret Camera DS-2CE56H0T-IT3E
Hikvision 5MP External Turret Camera, 3.6mm, True Day/Night, OSD menu, 2D DNR, DWDR, EXIR, up to 20/40m IR distance,12VDC, IP67, 2560 × 1944 resolution, PoC.
- 5 Megapixel high-performance CMOS
- True Day/Night
- OSD menu, 2D DNR, DWDR
- EXIR technology, up to 20/40m IR distance
- IP67 weatherproof
- 2560 × 1944 resolution
- Up the Coax(HIKVISION-C)
| Camera | |
|---|---|
| Image Sensor: | 5MP CMOS Image Sensor |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| Menu | |
| D/N Mode: | Auto / Color / B/W |
| Auto White Balance: | Auto/MWB |
| BLC: | Support |
| AGC: | Support |
| Language: | English |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±25%/PoC.af |
| Weather Proof: | IP67 |
| IR Range: | Up to 20m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Φ 110 mm × 93.2 mm (Φ 4.33″ × 3.67″) |
| Weight: | Approx. 340 g (0.75 lb.) |
| Title | Type | Size | |
|---|---|---|---|
|
Datasheet_of_DS-2CE56H0T-IT3E_20180326 | application/pdf | 994 KB |
|
|
UD09483B_Baseline_H0T_PoC_FF_Series_Turret___Dome_Camera_User_Manual_V1.0.0_20180321 | application/pdf | 2 MB |
|
|
Datasheet_of_DS-2CE56H0T-IT1E_20180326 | application/pdf | 997 KB |
| Brand | Hikvision |
|---|---|
| Technology | AHD |
| Resolution | 5 MegaPixel |
| Features | POC |
