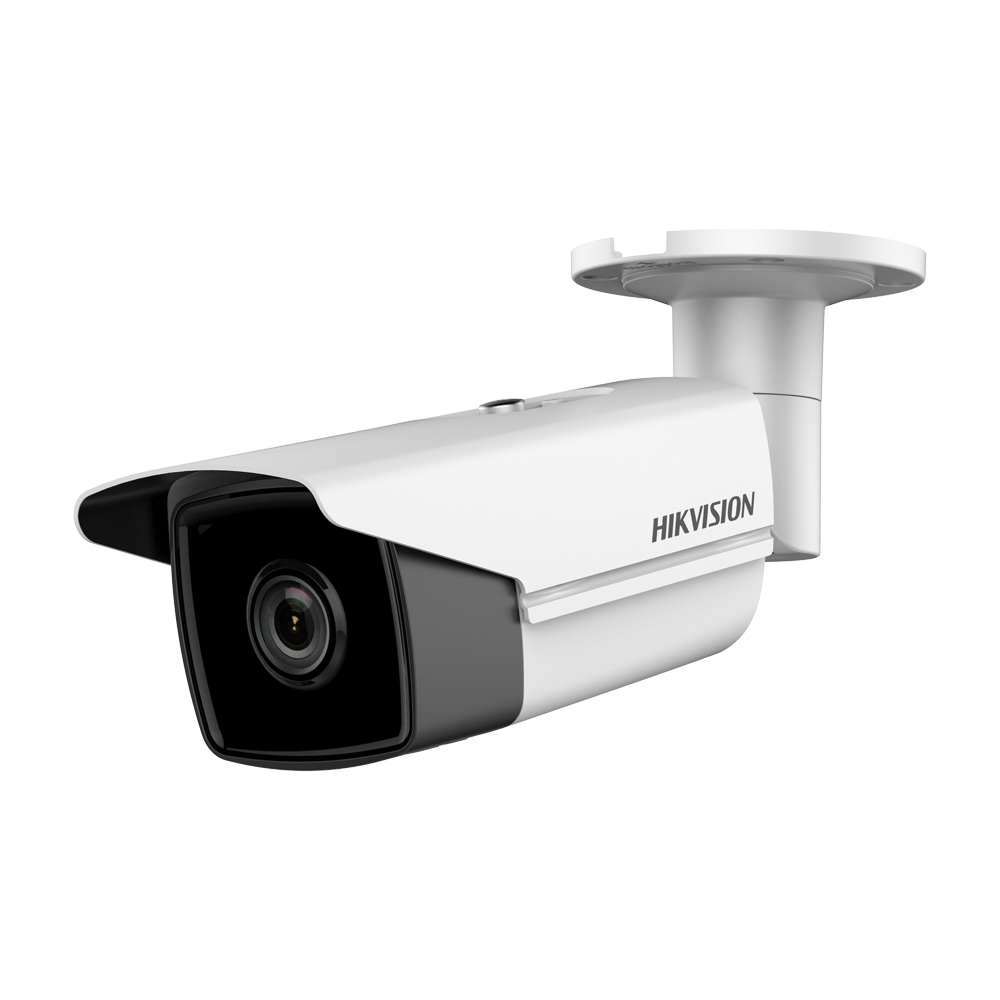

Hikvision 5MP Bullet 4mm Network Camera DS-2CD2T55FWD-I5

HIKVision 5MP Network Bullet Camera, 1/2.9″ Progressive Scan CMOS, Colour: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR, Up to 50m IR Range, 2560 ? 1920,:20fps, 4mm lens, Built-in Micro SD/SDHC/SDXC slot up to 128 GB, 120dB WDR, 3D DNR, IP67, 12VDC/PoE, 3 year warranty

Description
Additional information

Camera
Image Sensor	1/2.9″ Progressive Scan CMOS
Min. Illumination	Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Support
Lens	2.8 mm, horizontal field of view: 81° 4 mm, horizontal field of view: 63.5° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 33° 12 mm, horizontal field of view: 16°
Lens Mount	M12
Iris	F2.0
Day &Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Support
H.265 Type	Main Profile
H.265+	Support
Video Bit Rate	32 Kbps to 16 Mbps
Max. Resolution	2560 x 1920
Main Stream	50Hz: 20 fps (2560 x 1920), 25 fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x720) 60Hz: 20 fps (2560 x 1920), 30 fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x720)
Sub Stream	50Hz: 25fps (640 x 360, 352 x 288) 60Hz: 30fps (640 x 360, 352 x 240)
Third Stream	50Hz: 25fps (1280 x720, 640 x 360, 352 x 288) 60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement	BLC/3D DNR
Image Settings	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
ROI (Region of Interest)	Support 1 fixed region for mainstream and sub stream separately
Day/Night Switch	Auto/Scheduled
Network
Network Storage	Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection	Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection	Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection	Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection	Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE(802.3af 42.5 – 57V, class 3)
Power Consumption	-I5: 12 VDC ± 25%, 7 W; PoE, 9 W -I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
IR Range	-I5: up to 50 m -I8: up to 80 m
Protection Level	IP67
Dimensions	Camera: $104.8 x 299.7 mm ($4.13″ x 11.8″) Package: 386 x 156 x 155 mm (15.2″ x 6.14″ x 6.1″)
Weight	1200 g (2.65 lb.)

Brand	Hikvision
Features	Bullet Camera
Resolution	5 MegaPixel
Technology	IP
