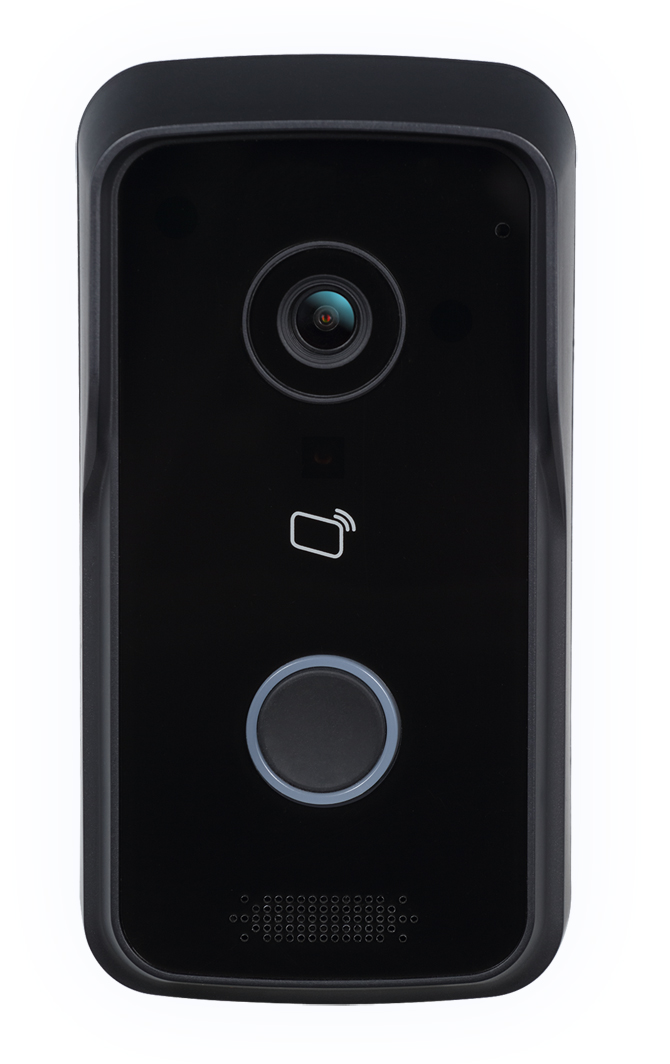

SPRO 1.0MP CAMERA BUILT IN, 2.8MM, MICROPHONE & SPEAKER, DC12V/POE
£181.76 inc VAT
Out of stock
KEY FEATURES:
– HD CMOS camera
– Large field of view angle
– Night vision
– Voice indication
– Remote intercom with mobile APP
– Surface mounted
SPECIFICATIONS:
| Model Number | VI-STN01-WIFI |
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Image Sensor | 1/4″ 1MP CMOS |
| Lens | 2.2mm |
| Angle of View | D:125° H:105° |
| Day/Night | ICR |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional Mic |
| Audio Output | Built-in Speaker |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Operation Mode | |
| Keypad | Single Mechanical Button |
| Reader | Contactless ID Card |
| Interface | |
| Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
| Alarm In | 2(1ch unlock button, 1ch feedback) |
| RS485 | 1 |
| Network | |
| Wi-Fi | IEEE802.11b/g/n |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Ingress Protection | IP65 |
| Tamper Switch | 1 |
| Memory Slot | N/A |
| Installation | Surface only |
| Material | Plastic |
| Power | DC 12V,PoE(802.3af) |
| Power Consumption | Standby ≤1W, Work ≤10W |
| Working Temperature | -30°C~+60°C |
| Relative Humidity | 10%~90%RH |
| Dimensions | 135mm×70.4mm×34.4mm |
| Weight | 0.4Kg |
| Title | Type | Size | |
|---|---|---|---|
|
VI-STN01-WIFI | application/pdf | 332 KB |
| Brand | SPRO |
|---|
