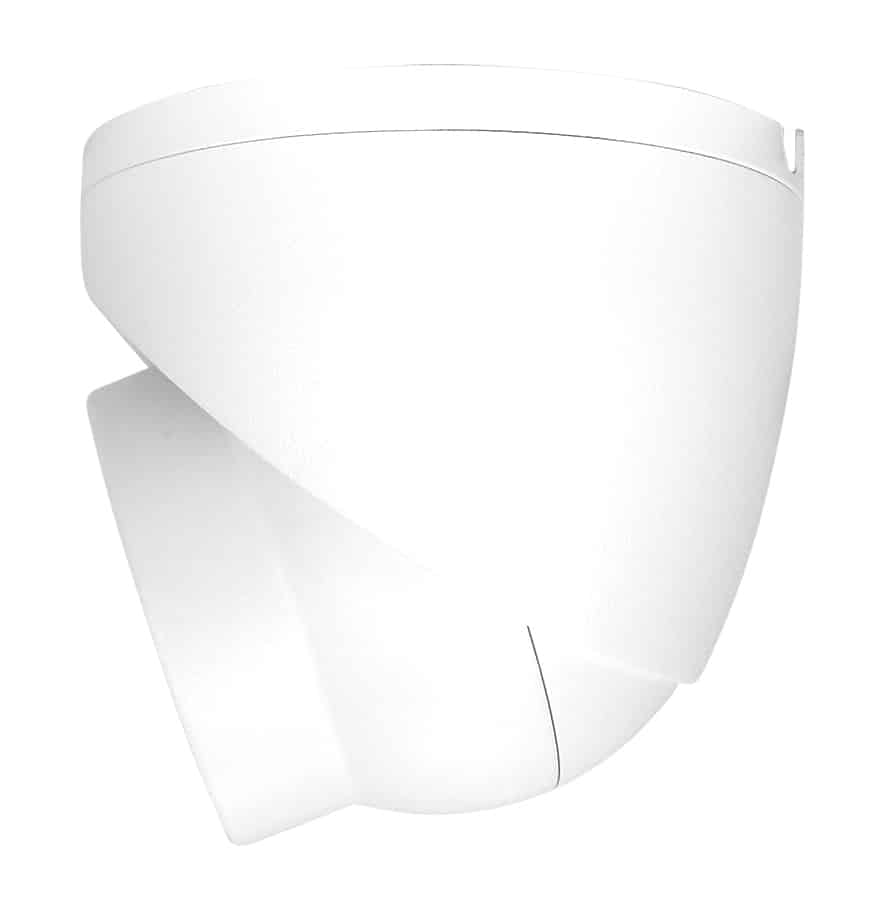

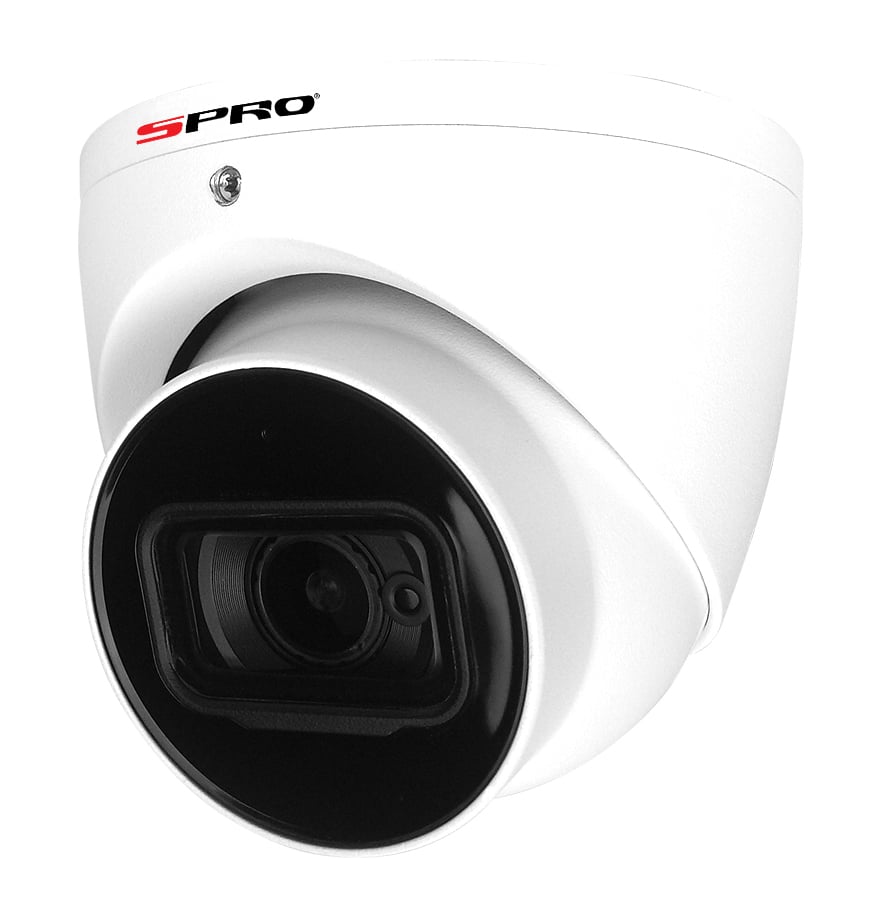

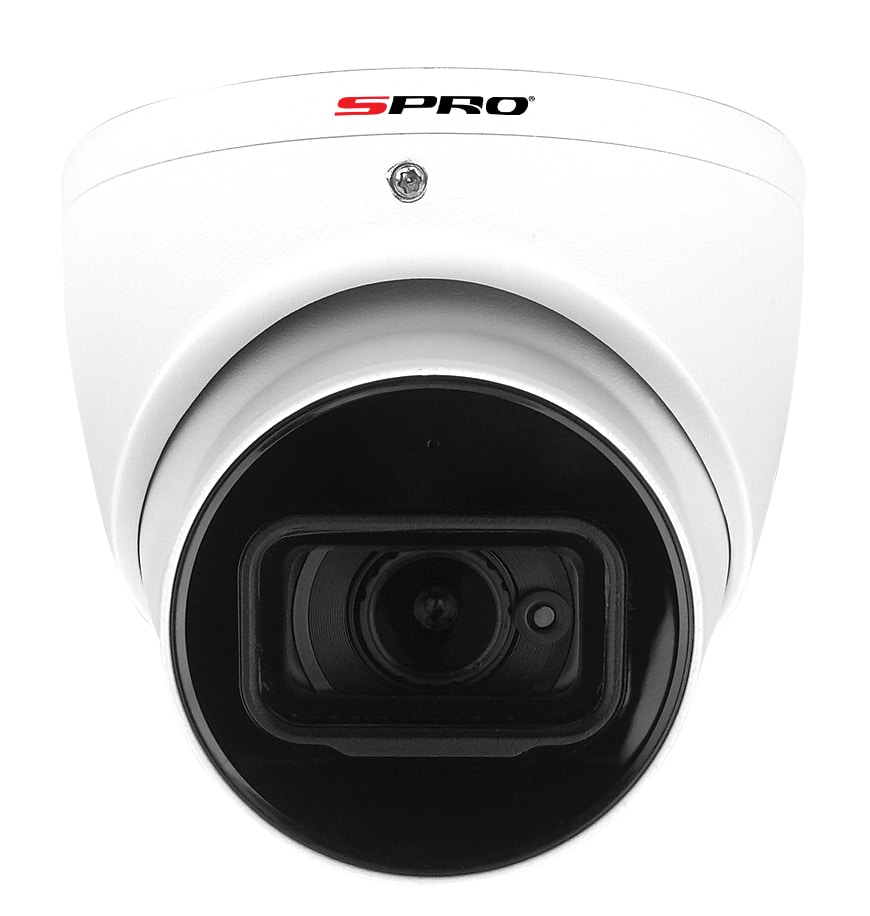

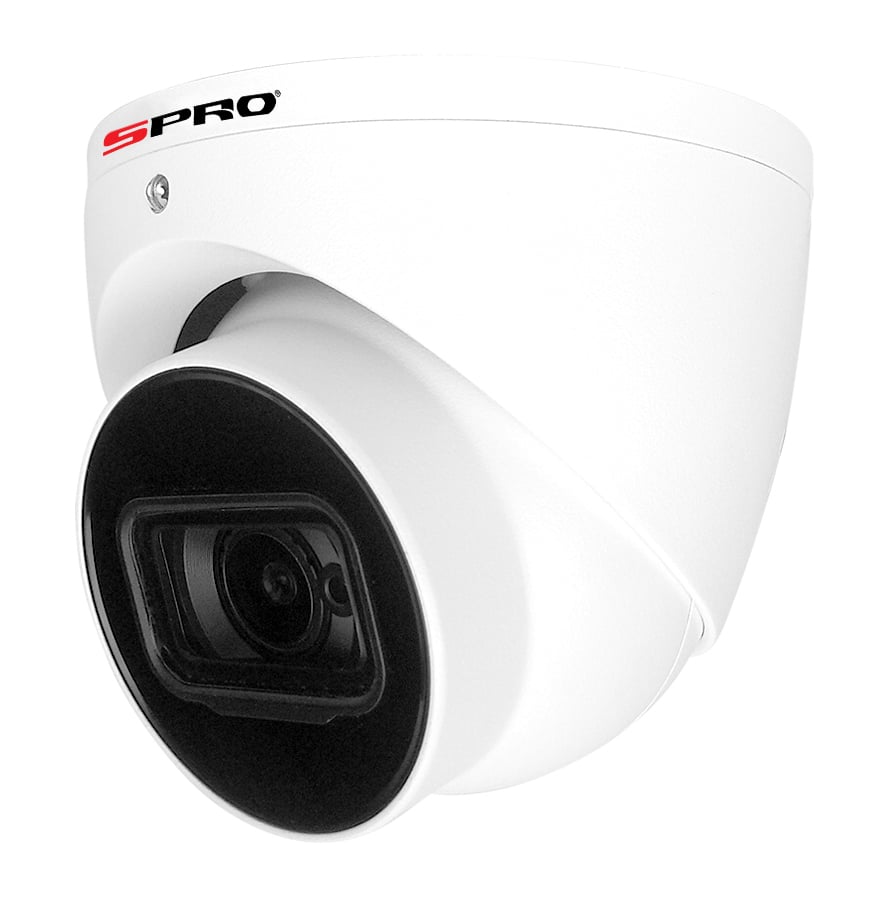

SPRO 5MP Turret Network Camera with Mic DHIPD50/28RW/30-M-E

Name: SPRO 5MP Turret Network Camera with Mic DHIPD50/28RW/30-M-E
SKU: DHIPD50/28RW/30-M-E
Price: 66.65 GBP
Availability: InStock

Original price was: £94.08.Current price is: £79.98. inc VAT

SKU: DHIPD50/28RW/30-M-E Category: IP Cameras Tag: IP Cameras

5 Megapixel progressive scan CMOS
H.265 & H.264 dual-stream encoding
5M@20fps(2880xl 620)
Microphone Built-in (Directional)
2.8mm fixed lens
Max. IR LEDs Length 30m
IP67 waterproof
DC 12V/POE

Model Number	DHIPD50/28RW/30-M-E
Image Sensor	1/2.7″ CMOS
Effective Pixels	2880 (H) × 1620 (V)
ROM	16 MB
RAM	128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~ 1/100000s
Min. Illumination	0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on)
Max. IR LEDs Length	Distance up to 30m
IR On/Off Control	Auto/ Manual
IR LEDs	1
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	2.8mm
Max. Aperture	F2.0
Field of View	H:105°, V:56°, D:125°
Iris Type	Fixed
Focus Control	0.8 m (2.62 ft)
DORI Distance	Detect: 56m \| Observe: 22.4m \| Recognize: 11.2m \| Identify: 5.6m
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°
Video
Compression	H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Streaming Capability	2 Streams
Resolution	2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate-Main Stream	2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps)
Frame Rate-Sub Stream	704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	Yes
HLC Mode	Yes
WDR Mode	DWDR
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto/ Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Yes (4 areas)
Smart IR	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 Area
Audio
Built-in MIC	Yes
Compression	G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
Network
Ethernet	RJ-45 (10/100Base-T)
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability	ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
Max. User Access	6 Users
Storage	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	SPRO CSS
Smart Phone	iPhone, iPad & Android
General
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic: 1.7 W (12V DC); 2.5W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 3.7 W (12V DC); 4.5 W (PoE)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤ 95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Ingress Protection	IP67
Casing	Metal
Dimensions	85.6 mm × Φ94.0 mm
Net Weight	0.32 kg
Gross Weight	0.43 kg

	Title	Type	Size
	DHIPD50-28RW-30-M-E	application/pdf	536 KB

Weight	1000 kg
Brand	SPRO
Resolution	5 MegaPixel
Technology	IP

SPRO 5MP Turret Network Camera with Mic DHIPD50/28RW/30-M-E
