-10%

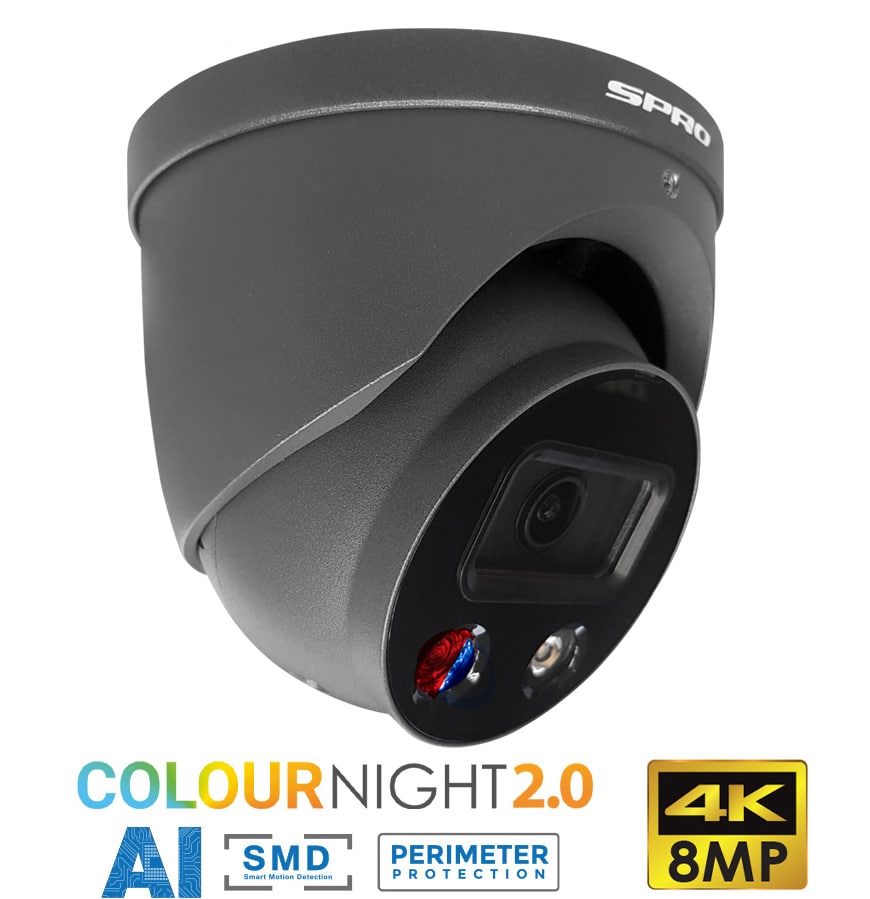

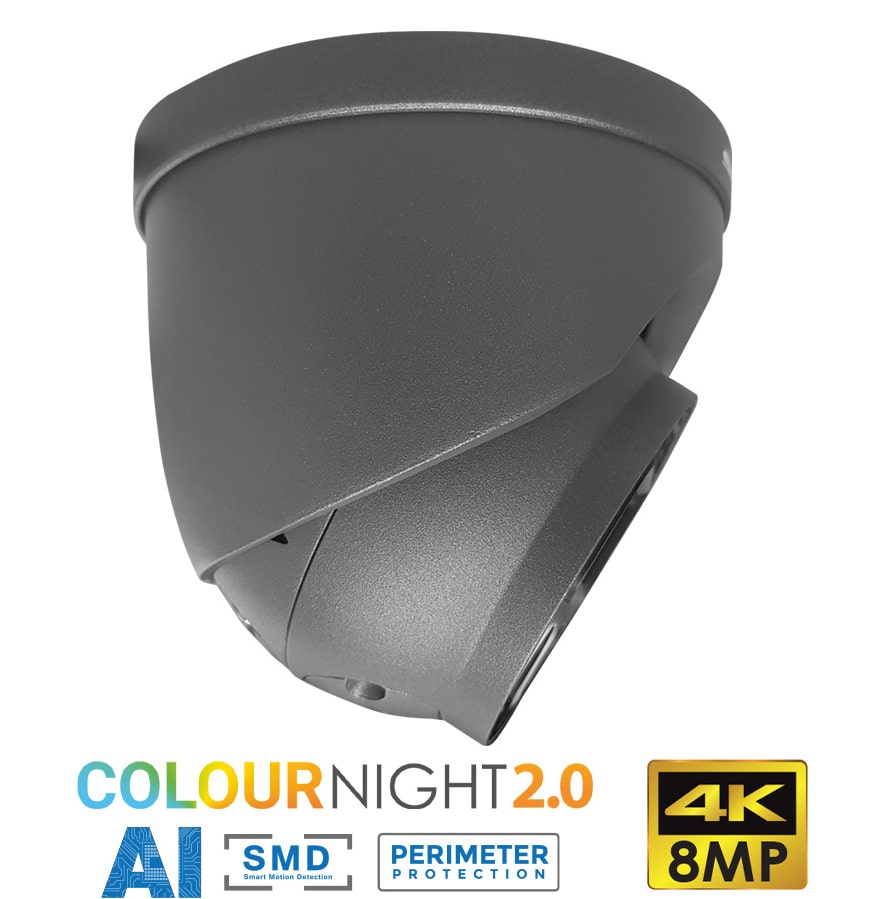

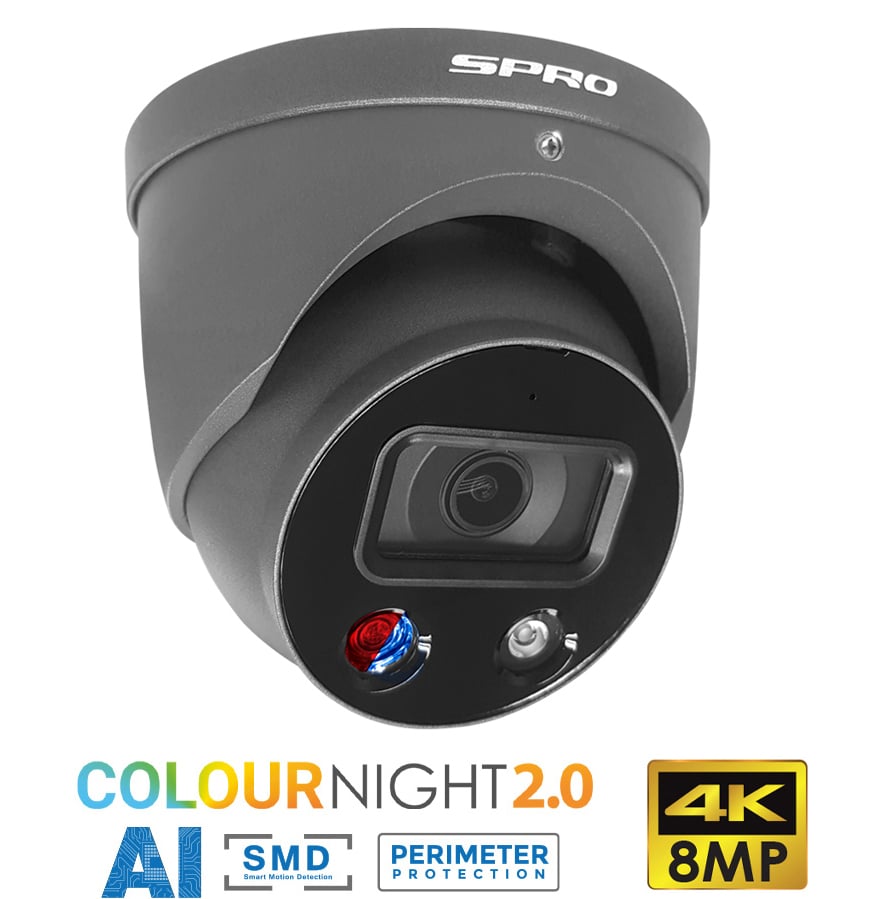

SPRO 8MP TiOC 2.0 Smart Dual Illumination Turret Active Deterrence Network Camera DHIPD80/28LRG/30-D-V3
Original price was: £250.00.£224.99Current price is: £224.99. inc VAT
The SPRO second generation Active Deterrence range of cameras are designed to prevent crime before it happens by deterring would be intruders.
These cameras feature a red and blue flashing light, a built in speaker for 2-way audio and pre-recorded sounds that can be triggered on a AI event (human or vehicle detection). Built-in Colour Night technology with the aid of a white LED light allows the camera to see in full colour at night however should this function not be desired, the second generation range come with IR illumination. allowing for black & white night vision.
- 8 megapixel
- H.265
- 2.8mm Lens
- Up to 30m LED distance (smart LED)
- Up to 30m IR distance
- SMD 4.0 (Smart motion detection)
- Intrusion (human & vehicle classification)
- Tripwire (human & vehicle classification)
- Two-way-audio
- Microphone built-in (audio over CAT5e cable)
- 120dB WDR
- IP67 waterproof
- DC 12V/POE
| Model Number | DHIPD80/28LRG/30-D-V3 |
| Image Sensor | 1/2.8” 8Megapixel progressive CMOS |
| Effective Pixels | 3840 (H) × 2160 (V), 8MP |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Colour, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto/ Manual |
| Illuminator Number | 1 (IR LED) 1 (warm light) |
| Pan/ Tilt/ Rotation Range | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Field of View | Horizontal: 106°; vertical: 55°; diagonal: 125° |
| Iris Type | Fixed |
| Close Focus Distance | 2.0 m (6.56 ft) |
| DORI Distance | Detect: 91 m Observe: 36.4 m Recognize: 18.2 m Identify: 9.1 m |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| SMD 4.0 | Less false alarm, longer detection distance. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080 @1-25/30 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 Streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 3 Kbps–20480 Kbps H.265: 3 Kbps–20480 Kbps |
| Day/Night | Auto (ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor /Manual / regional custom |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 Areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception. |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade. |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| Max. User Access | 20 (Total bandwidth: 72 M) |
| Storage | Micro SD card (Support max. 256 G) / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| General | |
| Power Supply | DC12V, POE |
| Power Consumption | Basic: 5.2 W (12 VDC); 5.5 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 9.2 W (12 VDC) 10.2 W (PoE) |
| Operating Conditions | -40ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -40ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | φ122.0mm × 110.9mm |
| Net Weight | 754g |
| Gross Weight | 915g |
| Title | Type | Size | |
|---|---|---|---|
|
DHIPD80-28LRG-30-D-V3 | application/pdf | 442 KB |
| Brand | SPRO |
|---|---|
| Features | 2-Way Audio, 24/7 Colour, Active Deterrence, Microphone Built-In |
| Resolution | 8 MegaPixel |
| Technology | IP |
