-14%

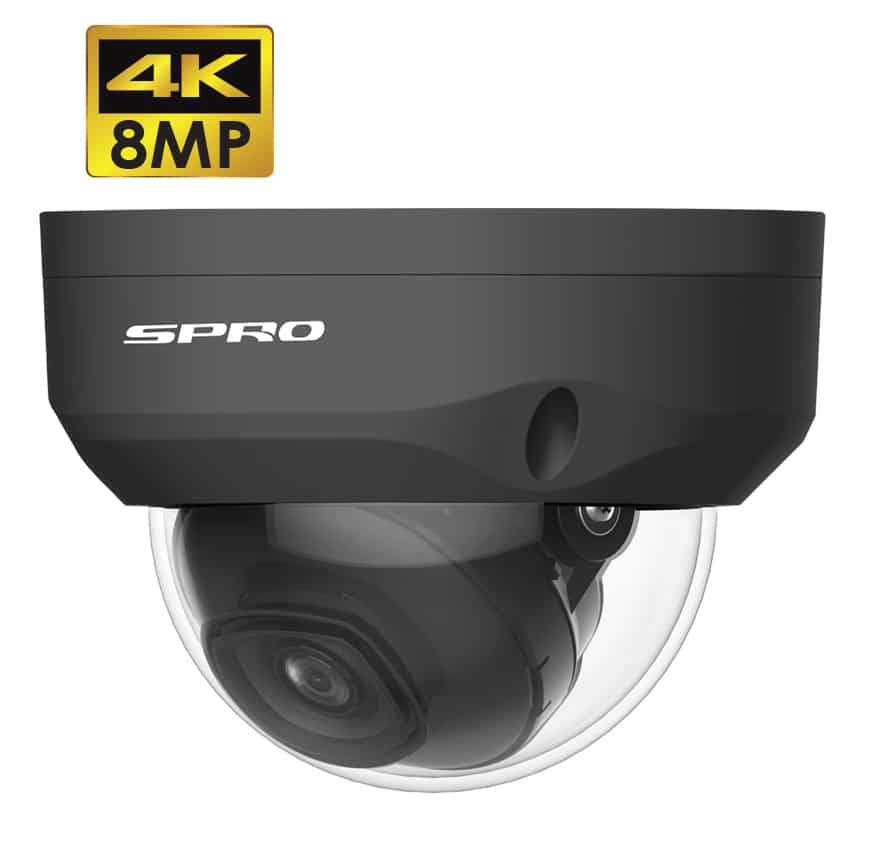

SPRO 8MP Vandal Resistant Network Camera DHIPD80/28RV-G-V2
Original price was: £115.99.£99.84Current price is: £99.84. inc VAT
The DHIPD80/28RV-G-V2 Network IR Dome camera offers H.265 encoding technology and high efficient video compression capability. It can save bandwidth and storage. The camera is fully protected from dust and water, certified to IP67 and vandal resistant to IK10.
- 8 Megapixel progressive CMOS
- H.265 & H.264 dual-stream encoding
- 1-15fps@8MP (3840×2160)
- WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8mm fixed lens
- Up to 30m IR distance
- IP67 waterproof and IK10 vandal resistance
- DC 12V/ PoE
| Model Number | DHIPD80/28RV-G-V2 |
| Image Sensor | 1/2.7” 8 Megapixel progressive scan CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~ 1/100000s |
| Min. Illumination | 0.009 Lux@F2.0 |
| S/N Ratio | < 56dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Angle of View | Horizontal 105° × Vertical 56° × Diagonal 125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0m |
| DORI Distance | Detect:74.7 m, Observe:29.9m, Recognize:14.9m, Identify:7.5m |
| Smart Event | |
| IVS | Tripwire, Intrusion |
| Video | |
| Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate-Main Stream | 3840 × 2160 (1 fps–15 fps), 2688 × 1520 (1 fps–25/30 fps) |
| Video Frame Rate-Sub Stream | 704 × 576 (1 fps–25 fps), 704 × 480 (1 fps–30 fps) |
| Streaming Capability | 2 Streams |
| Resolution | 4K (3840×2160)/ 6M (3072×2048)/ 5M (2560×1920)/ 3M (2048×1536)/ 3M (2304×1296) /1080P (1920×1080)/ 1.3M (1280×960)/ 720P (1280×720)/ D1 (704×576/ 704×480) /VGA (640×480)/ CIF (352×288/ 352×240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265:32kbps~ 8192Kbps / H.264: 12kbps ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Max. User Accessr | 20 Users |
| Edge Storage | Micro SD Card (support max. 256 GB), Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Smart Phone | iPhone, iPad & Android |
| General | |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 6.2W |
| Working Temperature | -40ºC ~ 60ºC / Less than 95% RH |
| Storage Environment | -40ºC ~ 60ºC / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |

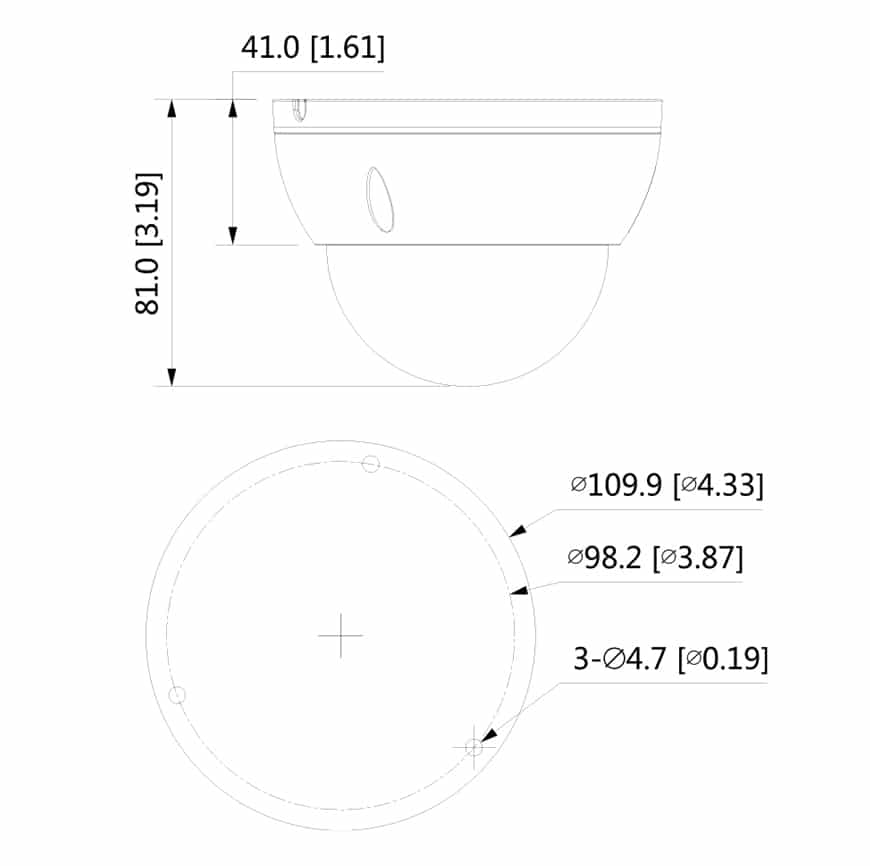

| Dimensions | 81 mm × Φ109.9 mm |
| Net Weight | 0.350 kg |
| Gross Weight | 0.491 kg |
| Title | Type | Size | |
|---|---|---|---|
|
DHIPD80-28RV-G-V2 | application/pdf | 2 MB |
| Brand | SPRO |
|---|---|
| Features | Vandal Resistant |
| Resolution | 8 MegaPixel |
| Technology | IP |
