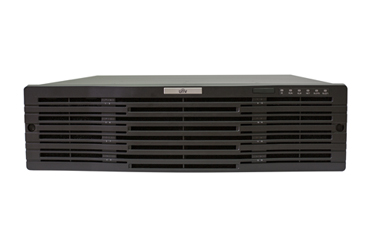

UNV 128CH Prime Series Professional RAID CCTV NVR Recorder
• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Up to 32 Megapixels resolution recording
• 16 SATA HDDs, Up to 16TB for each HDD
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
| Decoding | Description |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | NVR516-64E-R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64 x 720P@30 NVR516-128E-R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64 x 720P@30, 128 x D1 |
| Audio Compression | G.711A,G.711U |
| Network | Description |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 |
| Browser(Plugin) | IE(IE10/11)for Windows,Firefox(version 52.0 and above)for Windows,Chrome(version 45 and above)for Windows,Edge(version 79 and above)for Windows |
| Video/Audio Input | Description |
| IP Video Input | NVR516-64E-R:64-ch NVR516-128E-R:128-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI1:8K(7680×4320)/60Hz,4K(3840×2160)/30Hz,1920×1080/60Hz,1920×1080/50Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz HDMI2:4K(3840×2160)/30Hz,1920×1080/60Hz,1920×1080/50Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
| VGA Output | VGA1/VGA2:1920×1080/60Hz,1920×1080/50Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | 1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | Description |
| Two-way Audio | 1-ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | 16-ch snapshot,up to 1080P resolution |
| Recording | Description |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| Smart | Description |
| VCA Detection by IPC | Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| VCA Search | Motor Vehicle Search;Non-Motor Vehicle Search; General Search;People Counting Report;Heat Map |
| Smart by IPC | Total 64-ch(Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring) |
| Alarm | Description |
| General Alarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering; Video Loss;Alarm Input;Audio Detection |
| Alert Alarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| GUI Language | Description |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | Description |
| SATA | 16 SATA Interfaces |
| Capacity | Up to 16TB for each HDD |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0,1,5,6,10,50,60 |
| Hot Swap | Support |
| External Interface | Description |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12V |
| Power Supply | AC 100～240V |
| Power Switch | Support |
| Redundant Power Supply | Support |
| Working Environment | Description |
| Working Temperature | -10°C ~ + 55°C (+14°F ~ +131°F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 50W |
| Dimensions | Description |
| Weight (without HDD) | ≤ 6.5Kg (14.3lb) |
| Height | 3U |
| Dimensions | 482mm × 533mm × 131mm (19.0″×21.0″×5.1″) |
| Certification | Description |
| Certification | CE,FCC,UL,RoHS,WEEE |
| CE | EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035 |
| FCC | Part15 Subpart B |
| Title | Type | Size | |
|---|---|---|---|
|
NVR516-E-R-datasheet | application/pdf | 556 KB |
| Brand | UNV |
|---|---|
| Channels | 128 Channel |
