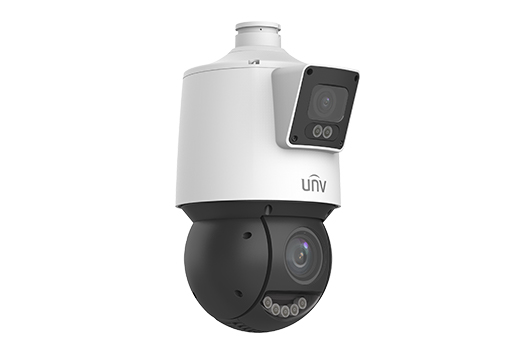

UNV 4MP Dual Lens Dual Illumination 25x Optical PTZ Dome Network Camera

UNV 4MP Dual Lens Dual Illumination 25x Optical PTZ Dome Network Camera - Image 2

UNV 4MP Dual Lens Dual Illumination 25x Optical PTZ Dome Network Camera - Image 3

UNV 4MP Dual Lens Dual Illumination 25x Optical PTZ Dome Network Camera - Image 4

UNV 4MP Dual Lens Dual Illumination 25x Optical PTZ Dome Network Camera

• Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• IR & warm light illumination to deal with different scenes and achieve full-color illumination
• DC12V or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out

Login to view Prices SKU: IPC94144SFW-X25-F40C Category: IP Cameras Tags: 24/7 Colour Cameras, Dual Illumination, IP Cameras

Camera	Panorama			Detail
Sensor	1/1.8″, 4MP, CMOS			1/2.7″, 4MP, CMOS
Min. Illumination	Color:0.0005 lux (F1.0, AGC ON) 0 lux with warm light			Color:0.003 lux (F1.5, AGC ON) 0 lux with IR
Day/Night	N/A			IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB
S/N	＞56dB
Lens
Lens type	4mm@F1.0			4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens
Optical Zoom	N/A			25X
Iris	Fixed aperture; F1.0			Auto; F1.5(W)~F3.8(T)
Field of View (H)	94.9°			55.46° ~ 3.09°
Field of View (V)	51.5°			32.94° ~ 1.73°
Field of View (D)	116.7°			68.22° ~ 3.65°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)		Recognize (m)	Identify (m)
	4 (Panorama)	62.1 (203.6 ft)	24.8 (81.5 ft)		12.4 (40.7 ft)	6.2 (20.4 ft)
	4.8 (Detail)	123.8 (406.0 ft)	49.5 (162.4 ft)		24.8 (81.2 ft)	12.4 (40.6 ft)
	120 (Detail)	2475.0 (8120.1 ft)	990.0 (3248.0 ft)		495.0 (1624.0 ft)	247.5 (812.0 ft)
Illuminator
IR Range	N/A			Up to 100m (328.1 ft)
Warm Light Range	Up to 30m (98.4 ft)			N/A
Wavelength	N/A			850nm (IR)
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4MP (26881520),Max 30fps; Sub Stream: 1080P (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps;			Main Stream: 4MP (26881520),Max 30fps; Sub Stream: 720P (1280720), Max 30fps; Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate	128 Kbps ~ 16 Mbps
U-code	Support
ROI	Up to 8 areas
Video stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas per scene			24 areas, up to 4 areas per scene
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°
HLC	Support
BLC	Support
Defog	Digital defog
Events
Basic Detection	Motion detection, Audio detection, Tampering Alarm
Auto Tracking	N/A			Support
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and common user
Security	Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZView
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range	N/A			360°
Pan Speed	N/A			0.1°/s ~ 80°/s
	Preset speed: N/A			Preset speed: 80°/s
Tilt Range	18° ± 5°			-15° ~ 90°
Tilt Speed	N/A			0.1°/s ~ 80°/s
	Preset speed: N/A			Preset speed: 80°/s
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15s~1800s
Preset Image Freeze	N/A
Home Position	Support
Interface
Audio I/O	1/1
Alarm I/O	2/1
Serial Port	1 RS485
Built-in Mic	N/A
Built-in Speaker	Support
Wi-Fi	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC12V (±25%), PoE+(IEEE 802.3at)
	Power consumption: MAX 24W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (Ø x H)	Φ163 x 304mm (Φ6.4” x 12.0”)
Weight	2.27kg (5.00lb)
Working Environment	-40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing)
Surge protection	6KV
Reset button	Support

	Title	Type	Size
	Network Camera User Manual-V3.00	application/pdf	11 MB
	UNV 【Datasheet】 IPC94144SFW-X25-F40C 4MP+4MP Lighthunter Dual-lens Network PTZ Camera Datasheet V1.1-EN	application/pdf	457 KB

Brand	UNV
Technology	IP
Resolution	4 MegaPixel
Features	PoE, PTZ, Smart Dual Illuminaton
